Cotton Fabrics Lab Test Equipment / Tensile Strength Tensile Tester With Computer Controller

1 Set
MOQ
$3,500.00(>=1 Sets)
τιμή
Cotton Fabrics Lab Test Equipment / Tensile Strength Tensile Tester With Computer Controller
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty: 3 years
Customized support: OEM
Place of Origin: Guangdong, China
Μάρκα: YAOKE
Model Number: UTM50
Power: Electronic
Standards: ISO 9073-5:2008,ASTM D3787, ASTM D6796, FZ/T01030, GB/T19976, etc
Clamp: dia 25mm(dia r45mm)
Test range: 2500N
Load measurement accuracy: +/-0.2% (1%-100%FS)
Speed range: 5 - 500mm/min adjustable
POWER: 220/110V 50/60HZ
Dimensions: 500 x 550 x 1200 mm(LxWxH)
Stroke Distance: 120 mm
Application: cotton fabrics, elastic fabrics, sock and glove products
Name: Used Tensile Testing Machine, Universal Tensile Testing Machine
Βασικές πληροφορίες
Place of Origin: Guangdong, China
Μάρκα: YAOKE
Model Number: UTM50
Πληρωμής & Αποστολής Όροι
Packaging Details: Computer Controller tensile testing machine Packaging:Standard Export Wooden Case.
Supply Ability: 200 Set/Sets per Month Computer Controller tensile testing machine
Περιγραφή προϊόντων

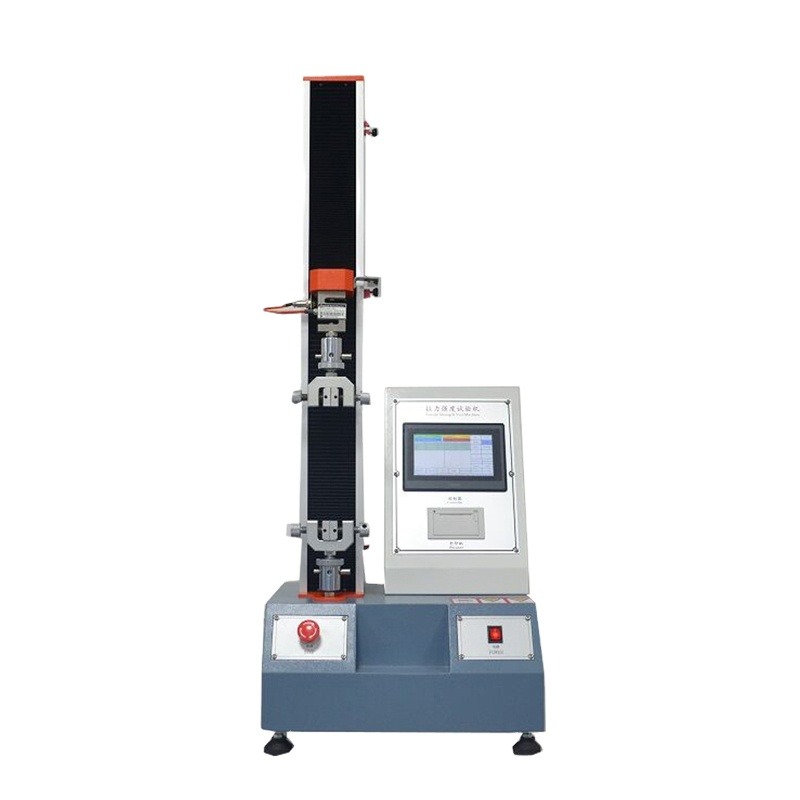

Computer Controller tensile testing machine

Product Description

Application

Universal Tensile Testing Machine, used for testing the ball-bursting strength and expansion rate of cotton fabrics, elastic fabrics, sock and glove products.

Universal Tensile Testing Machine Specifications

l CRE principle, Micro-computer controls quality motor and screws

l LCD displays displacement, force, speed, and other information.

l Test range: 2500N

l 1 set of Ball-bursting Strength Test rig is included.

l Load measurement accuracy: +/-0.2% (1%-100%FS)

l Speed range: 5 - 500mm/min adjustable

l Bursting ball: SΦ20mm (SΦ25mm, SΦ38mm)

l Clamp: Φ25mm(Φ45mm)

l Stroke Distance: 120mm

l Stroke limit protection devices and overload protection ensures safety of machine.

Standards

ISO 9073-5:2008,ASTM D3787, ASTM D6796, FZ/T01030, GB/T19976, FZ/T 60019

Universal Tensile Testing Machine Detail Pictures:

Function Features:

1.Automatic calibration: system can automatically realize the accuracy of the calibration value.
2.After the sample broken, automatic stop.
3.Automatic display: Real-time display testing force, displacement, testing speed, peak value, testing status on one LCD.
4.Automatic return: beam automatic return to initial position when testing finished.
5.Breakage judgment: sample after fracture,beam automatic stop moving.
6.Limiting protection: Program control and Mechanical limiting protection.
7.Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working
8.Automatic calculation: automatic calculation area after input sample diameter (round); Width, thickness (flat), sample gauge ect.

Configurations:

1.High strength main unit------------------------------------------------------------------------------1 set
2.High precision arc synchronous deceleration system---------------------------------------1 set
3.High precision ball screw---------------------------------------------------------------------------2 pcs
4.AC Servo motor and Control system(Panasonic optional )----------------------------- 1 set

5.High precision load sensor(CELTRON optional)----------------------------------------1 pc
6.Tensile fixture -----------------------------------------------------------------------------------------1 set
7.Compression fixture ------------------------------------------------------ ----------------- --------1set
8.Bending fixture(optional) --------------------------------------------------------------- ------1set

Software

1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. With many units of measurement, the metric system and british system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.

Contact Information

Packaging & Shipping

1.Packaging:

Ply-wooden cases, inner plastic films wrapped, Sometimes we use wooden case, sometimes we use carton case. it depent how weight the machine is.

2.Shipping:

We usually send the goods to you by air, we can also delivery the equipment by sea or by express. it depends on customer.

Company Information

Company Information

Dongguan Yaoke Instrument Equipment Co.,Ltd is specialize in rubber and plastic testing machine over 10 years,With our advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.
Our production line have turning machine,griding machine,milling machine,CNC machining center and sheet metal bending machine,design department has 5 people special for design and research new product.With these advantages,we can control product quality from source.
If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
