Αρχική Σελίδα /Προϊόντα/Αυτόματος ελεγκτής δύναμης/YT-ZBY YANTE Stiffness Tester For Paper Cup Testing Equipment YT-ZBY

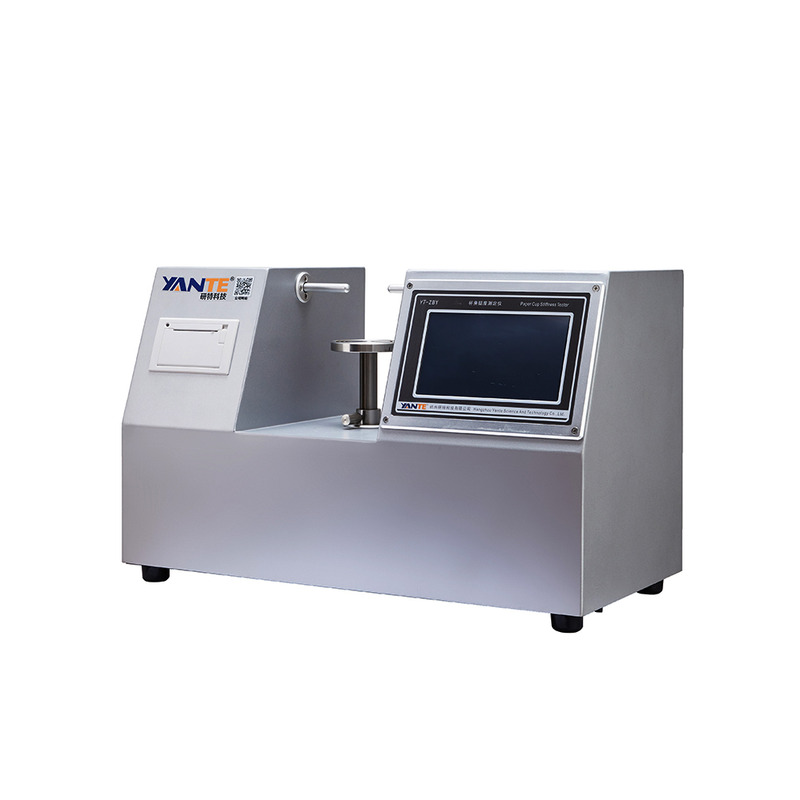

YT-ZBY YANTE Stiffness Tester For Paper Cup Testing Equipment YT-ZBY

1 Unit
MOQ
YT-ZBY YANTE Stiffness Tester For Paper Cup Testing Equipment YT-ZBY
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty: 1 year
Customized support: OEM, ODM, OBM
Place of Origin: Zhejiang, China
Μάρκα: YANTE
Model Number: YT-ZBY
Power: Electronic
Warranty Period: One Year
Πιστοποίηση: pcoc
1Certification: Reach
2Certification: IECEE
3Certification: scoc
4Certification: EPA
5Certification: GS
Βασικές πληροφορίες
Place of Origin: Zhejiang, China
Μάρκα: YANTE
Πιστοποίηση: pcoc, Reach, IECEE, scoc, EPA, GS
Model Number: YT-ZBY
Πληρωμής & Αποστολής Όροι
Packaging Details: Ply-wooden cases, inner plastic films wrapped
Περιγραφή προϊόντων
Product Overview
Paper Cup Stiffness Tester is a special instrument for testing the stiffness of paper cups. It is a necessary physical performance testing instrument for paper cup manufacturers, food companies and quality inspection departments.
Features At A Glance

The movable bench can be raised and lowered and locked, suitable for samples of different heights. ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument. Double measuring head structure design, more accurate test data. The relative distance between the two measuring heads can be preset on the touch screen, saving test time. The instrument has the function of automatically restoring the initial position over the range. Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued. Communication with computer software (purchase separately)
Details Images
Application Range
Paper cups, paper bowls, paper buckets
Execute Standard
QB/T 5023，GB/T 27590，JJG157

Supporting Accessories And Aonsumable
PC computer control software (purchase separately)
Sales And Service Network
Product Paramenters
No.
Parameter item
Technical index
1
Power Supply
AC(100～240)V，(50/60)Hz 100W
2
Working Environment
Temperature(10~35)℃, Humidity≤ 85％
3
Display
7 inch color touch screen
4
Paper cup size
Measurable paper cup diameter：20～150mm，Paper cup height：15≤L≤165mm
5
Measuring range
0.2～50N
6
Indication resolution
0.01N
7
Indication error
±1％(Range 5%～100%)
8
Print
Built-in thermal printer
9
Communication Interface
RS232
10
Dimension
560×270×355 mm
11
Net Weight
36kg around
