YT-H4E YT-H4E High Precision Paper Thickness Tester Electronic Fabric Testing Equipment

1 Unit
MOQ
YT-H4E YT-H4E High Precision Paper Thickness Tester Electronic Fabric Testing Equipment
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty: 1 year
Customized support: OEM, ODM, OBM
Place of Origin: Zhejiang, China
Μάρκα: YANTE
Model Number: YT-H4E
Warranty Period: One Year
Πιστοποίηση: pcoc
1Certification: Reach
2Certification: IECEE
3Certification: scoc
4Certification: EPA
5Certification: GS
Βασικές πληροφορίες
Place of Origin: Zhejiang, China
Μάρκα: YANTE
Πιστοποίηση: pcoc, Reach, IECEE, scoc, EPA, GS
Model Number: YT-H4E
Πληρωμής & Αποστολής Όροι
Packaging Details: Ply-wooden cases, inner plastic films wrapped.
Περιγραφή προϊόντων
Product Overview

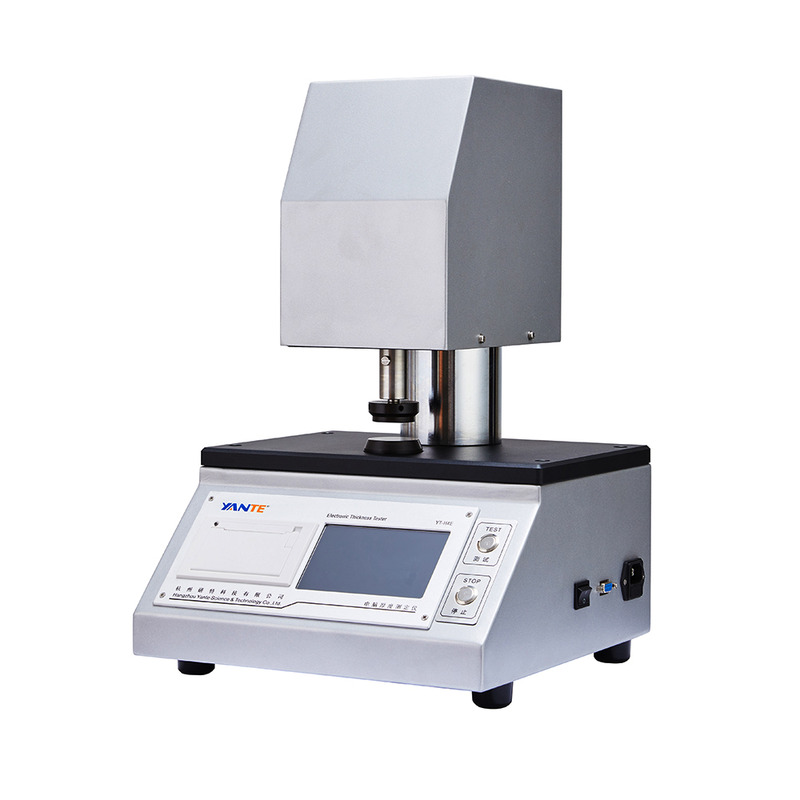

Tissue Paper Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. It is widely used for measuring the thickness of toilet paper and other sheet materials and corrugated paperboard. It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.
Features At A Glance

One-click test, easy to understand. ARM processor improves the response speed of the instrument, and the calculation is accurate and fast. The rising and falling speed of the probe can be adjusted. Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued. Automatic measurement, statistics, and printing of test results. Communication with computer software (purchased separately)
Details Images
Application Range
Tissue Paper
Execute Standard
GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534
Sales And Service Network
Product Paramenters
No.
Parameter item
Technical index
1
Power Supply
AC(100～240)V，(50/60)Hz 50W
2
Working Environment
Temperature(10~35)℃, Humidity≤ 85％
3
Display
5 inch color touch screen
4
Measuring range
(0～10)mm
5
Resolution
0.001mm
6
Indication error
±0.003mm or ±0.5％
7
Indication variability
≤0.003mm or ≤0.5％
8
Parallelism between measuring surfaces
≤0.0004mm
9
Contact area
(1000±5) mm²
10
Contact pressure
（2±0.1)kPa
11
Probe descending speed
（0.5～10）mm/s Adjustable
12
Print
Built-in thermal printer
13
Communication Interface
RS232(Default) (USB, WIFI optional)
14
Dimension
325×310×485 mm
15
Net Weight
24kg around
Recommend Products
Vertical Tensile Tester is used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.
Bursting Tester for Paper is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the bursting strength of sheet materials such as paper.
Spectrometer is a precision instrument for measuring the whiteness, color and color difference of solids. It is widely used in papermaking, printing, textile printing and dyeing, ceramics, building materials, food, salt and other industries industries
